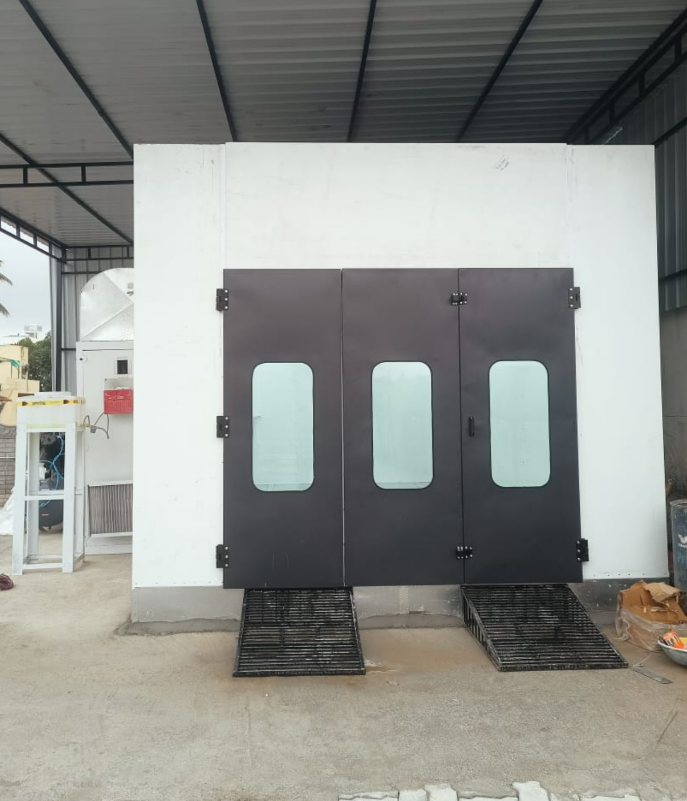

Spray Paint Booth Manufacturer & Supplier – Sethi Tools
Sethi Tools offers high-performance Spray Paint Booths designed for automotive workshops, industrial manufacturing units, commercial painting facilities, and fabrication industries. Built with advanced filtration, efficient airflow, and a reliable heating system, our paint booths provide a clean, dust-free environment that ensures a premium-quality paint finish while improving productivity and operator safety.
Technical Specifications
Specification Details
Power Supply 10.5 KW, 3 Phase, 50 Hz
Wallboard Fire Retardant PPG PUF Panels, 50 mm Thickness
Foundation System Full Metal Galvanized Foundation, 300 mm Height with Flat Steel Grids (2 Rows) & Metal Non-Slip Plates (3 Rows)
Heating System Diesel Burner with Stainless Steel Heat Exchanger
Heating Time 8–10 Minutes (20°C to 60°C)
Maximum Temperature Up to 80°C
Insulation Rock Wool Insulated Heating Cabinet
Filtration System Pre Filter (>10 μm), Ceiling Filter (>4 μm), Multi-Layer Glass Fiber Floor Filter
Air Cleanliness Up to 98%
Air Flow Centrifugal Fan with 5 HP Motor, 21, 000 m³/hr (Approx. 12, 600 CFM)
Ventilation High-Efficiency Centrifugal Fan with Air Speed of 0.25 m/sec
Control Panel Automatic Control Panel with Spray Mode, Bake Mode, Timer, MCB, Temperature Controller, Overload & Single Phase Protection
IR Heater Optional
Dimensions
Outer Dimensions: 7000 × 5200 × 3600 mm (L × W × H)
Internal Dimensions: 6900 × 3900 × 2750 mm (L × W × H)
Main Entrance Door: 3000 × 2500 mm with Handle & Lock
Operator Door: 800 × 2000 mm with Handle & Lock (Anti-Explosive)
Key Features
Heavy-duty fire-retardant PUF panel construction
Advanced multi-stage air filtration system
Powerful diesel heating with stainless steel heat exchanger
Uniform airflow for superior paint finish
Fast baking cycle for increased productivity
Automatic digital control panel
Energy-efficient centrifugal ventilation system
Dust-free painting environment
High safety standards with overload protection
Suitable for automotive and industrial applications
Applications
Automobile Body Shops
Car Service Centers
Truck & Bus Painting
Industrial Equipment Painting
Agricultural Machinery
Metal Fabrication Units
Manufacturing Plants
Commercial Paint Workshops
Why Choose Sethi Tools?
Premium quality spray booth systems
Advanced heating and filtration technology
Durable galvanized steel construction
Easy operation with automatic controls
Reliable after-sales support
Competitive pricing
Custom-built solutions available
Trusted supplier across India
