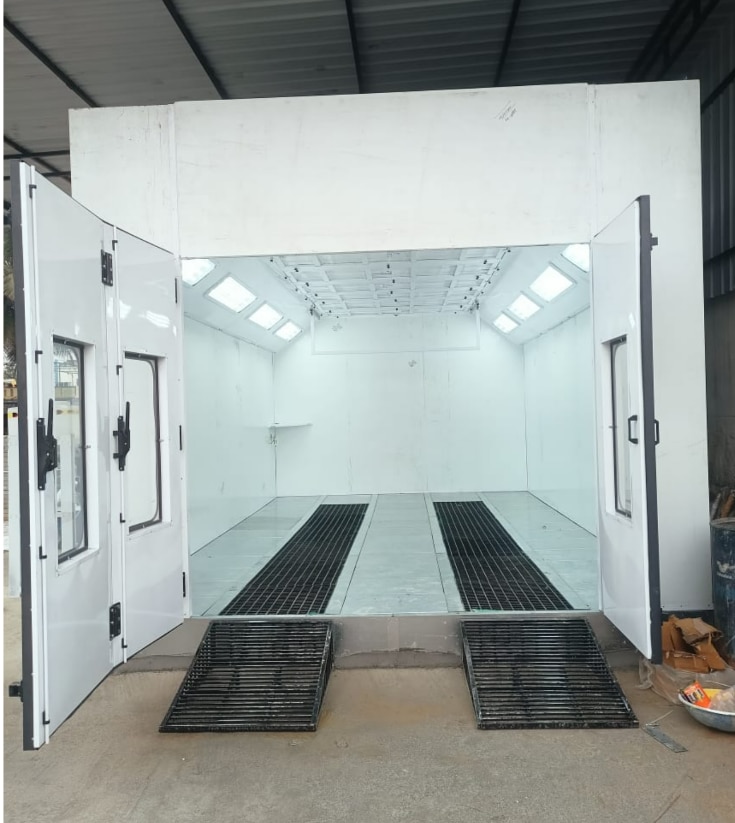

Spray Paint Booth

Spray Paint Booth

* Power

* Wallboard

* Foundation System

* Heating System

@sethitools

* Filtration System

* Air Flow

* Ventilation System

* Control Panel

: 10.5 KW, 3PH/50hz

: Fire retardant PPG| Puf Panel, Thickness: 50mm

: Full Metal Galvanized Foundation, 300mm Height Flat Steel

Gridsx2 Rows, Metal Non-Slip Platesx3 Rows : Diesel Burner With SS Heat Exchanger, 8-10

Minutes (From 20-60°C) Baking Time, Max Temperature Upto

80°C With Cabinet Of Rock-Wool Insulation

: Pre-Filters Can Capture Granules Larger Than 10um; Ceiling Filter Can Capture Granules Bigger Than 4um. Floor Filter Are Multilayer Glass Fiber Filters, Air Cleanliness In Room Can Reach 98%

: Centrifugal Fan With 5 HP Electric Motor Of Air Flow

21000M/,12600 CM

: Centrifugal Fan, Manometer With Air Flow Speed In Cabin

0.25m/Sec.

: Automatic Control Panel With Spray Switch, Baking Switch,

Timer, OverLoad Protection, Single Phase Protection, MCB and Temperature Controller

SUN

IR Heater (Optional)

* Outer Dimns. : 7000x5200x3600mm (LXWXH)

* Internal Dimns. : 6900x3900x2750mm (LXWXH)

* Entrance Door: 3000x2500mm (WXH) With Handle and lock

* Operator's Door: 800x2000mm (WXH) With Handle and lock (Anti-Explosive)
